Big Sur Sport G2 15Ah

500W | 80Nm | 720Wh

The very unique Big Sur Sport blends power, comfort and practicality within a convenient compact design that's easier to handle than most larger, bulky E-Bikes in the market. It is equally suited for recreational riding or more demanding utilitarian use, thanks to its powerful motor system provided by Bafang. Its low-to-the-ground, one-size-fit frame and agile handling geometry make it a popular choice for riders of all sizes and experience levels.

MSRP: 2,990$

Buy from your local dealer

Features & Benefits

  • Unique Compact Step-Thru Aluminum frame, integral Smooth Welding
  • UL Certified, Reliable Pedal Assist System, provided by Bafang
  • Powerful Rear Hub Motor, 48V, 500W, Max Torque 80Nm
  • High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)
  • Torque Sensor
  • Integrated Driving Lights & Blinkers Turn Signals
  • Bluetooth Connected Navigation System
  • Shimano Drivetrain
  • Tektro E-Brakes, Hydraulic, 203mm Rotors
  • Full Length Fenders and MIK system compatible Rear Rack included

Detailed Specifications

Frame: Unique Compact Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Integrated bearings, 100mm BSA, Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)

Fork: Zoom, 80mm travel Suspension Fork, Locking Lever, Spring Preload AdjustmentStem: Forged Alloy, 1-1/8” Threadless

Handlebar: Alloy, High Riser, Ø31,8mm, Width: 680mm

Grips: Comfort Ergo, Bolt-On

Seatpost: Alloy, Ø30.4mm Quick Release clamp

Saddle: Comfort Wide, Tear-Resistant, Integrated Springs and Lifting Handle

Shifters: Shimano Acera ST-M315, Rapidfire, 7 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 52T

Cassette: Shimano HG, Megarange 11-34T

Chain: PYC, 1/2” x 3/32”

Pedals:  Alloy, 9/16’’

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 20’’, 36H, Wide Profile, Alloy, Schrader

Hubs: Front: Alloy, 135mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)

Spokes: 12G Stainless Steel, Black

Tires: 20 x 4.0’’, Reflective Side Strips, E-Bike Rated Casing

Driving Lights: Front: Fork-mounted white driving light, 600 lumens, Rear: Integrated red driving light / Active braking and Yellow turning signal lights (remotely controlled)

Accessories: MIK-HD Alloy Cargo Rack, Fenders, Direct Mount Alloy Kickstand

Listed Weight: 74 lbs (33,5 kg)

Max Payload: 400 lbs (180 kg)

Pedal Assist System

Motor: Bafang G062 48V Brushless Rear Hub, 500W, 36H*12G

Battery: Bafang BT F400, Semi-Integrated, 15Ah (720Wh) Lithium-ion

Display: Bafang DP C010, Bluetooth Connected, Color TFT LCD, Buit-in Navigation System

Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups

Throttle: On Demand Thumb Press Button

Controls: (Left Side): Power / PAS level (Right Side): Blinkers Turn Signal Lights / Electronic Horn

Charger: AIMA 48V 3A Fast Charge

Estimated Range

Range varies significantly depending of motor power and battery capacity, and of course, depending on the selected power assist level. Other factors influencing range are nature of terrain, wind speed, gradient, riding style, total rider and cargo weight, tire pressure and temperature.

AIMA’s software provides the following estimated range figures based on a fully charged, brand new battery:

  • Assist Level 1: 80 km
  • Assist Level 2: 70 km
  • Assist Level 3: 60 km
  • Assist Level 4: 50 km
  • Assist Level 5: 45 km

For optimal battery health, avoid fully draining the battery. Instead, aim to recharge when the remaining capacity drops to around 10% to help preserve long-term performance and lifespan.

Geometry & Fit

Braking Lights & Blinkers

Enhance your visibility and communicate your intentions clearly with thumb-controlled turn signals and active braking lights, allowing other riders to anticipate your movements.

Navigation System

Built-in GPS navigation with smartphone integration for seamless route planning and tracking.

Removable Battery

Keep your battery safe from elements and thieves when transporting or storing your E-Bike

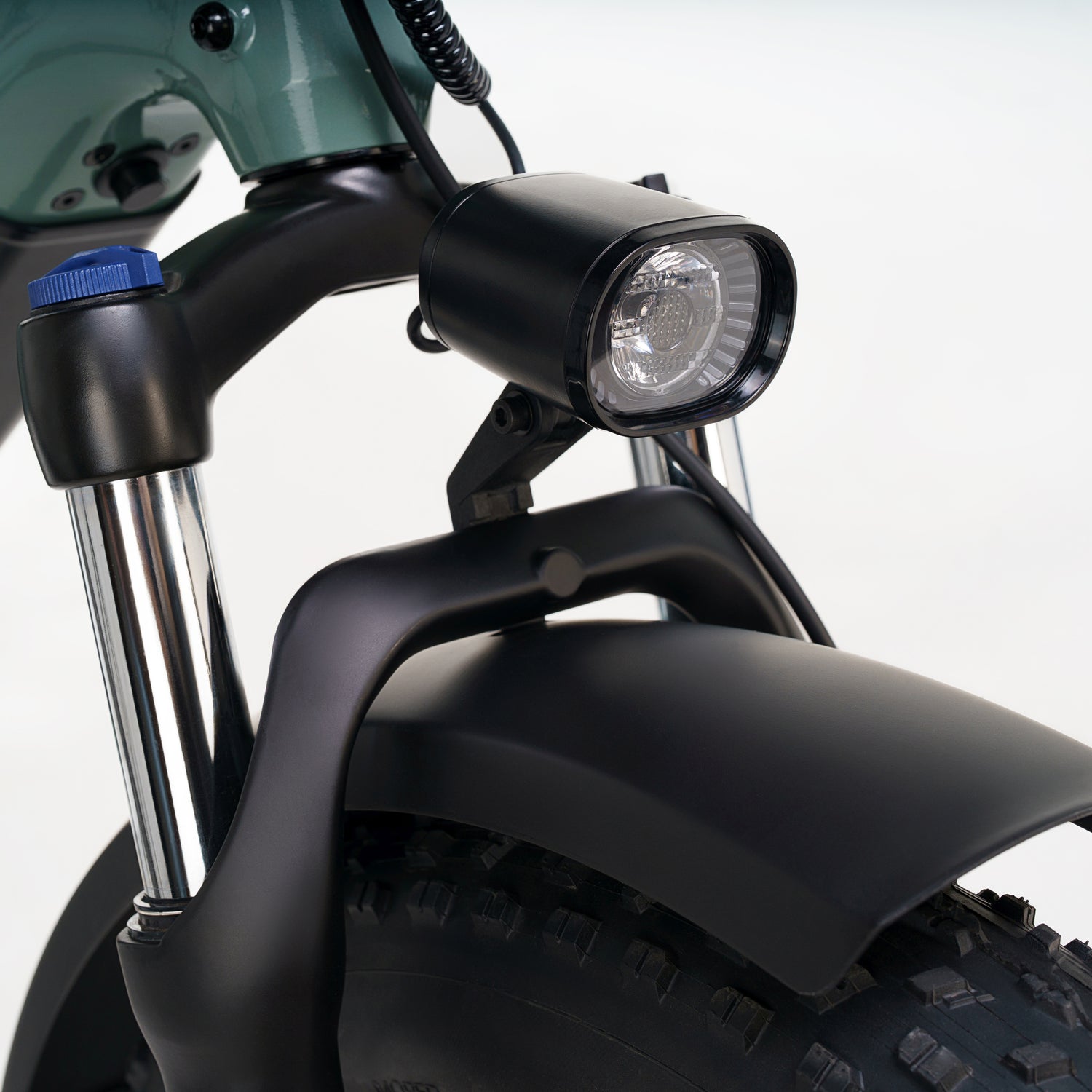

Bright Front Light

Integrated front light offers good road illumation and improves visibility

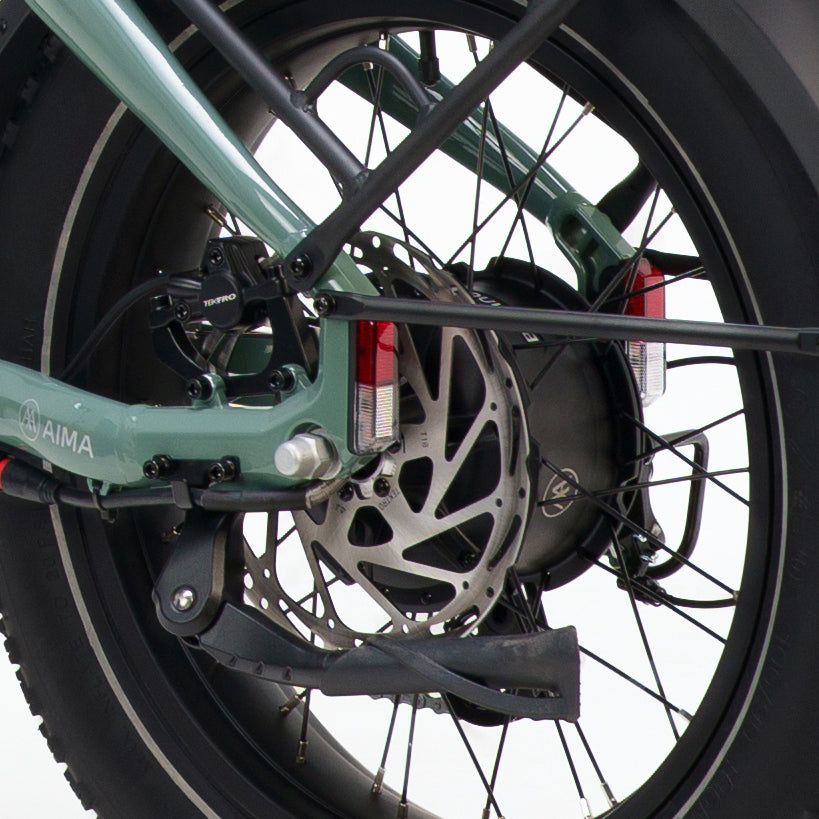

Hydraulic Disc Brakes

Powerful brakes allows for effortless, predictable braking. Extra large rotors prevents heat build-up and preserve performance on all conditions

Advanced Welding

AIMA’s signature craftsmanship, built on advanced manufacturing techniques, delivers seamless, virtually invisible welds — a refined finish that reflects premium quality

Wide Saddle

A comfort-focused saddle engineered to accommodate a wide range of riders and riding positions, ensuring balanced weight distribution and reduced pressure — even on longer rides.

MIK HD Rear Rack

Quickly attach and remove MIK-compatible accessories including child seats, trunk bags, panniers, and crates with no tool or unreliable Velcro straps. The secure locking system delivers a stronger, more stable connection every time.
