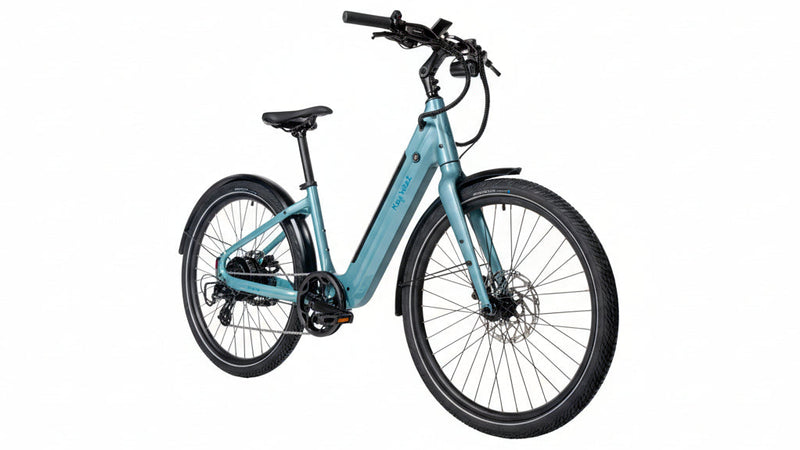

• Lightweight Step-Thru Aluminum frame, integral Smooth Welding
• UL Certified, Reliable Pedal Assist System, provided by Bafang
• Powerful Rear Hub Motor, 48V, 500W, Max Torque 60Nm
• Lithium-ion Battery, 48V, 12.8Ah (614Wh)
• Torque Sensor
• Integrated Driving Lights & Blinkers Turn Signals
• Bluetooth Connected Navigation System
• Shimano Drivetrain
• Tektro E-Brakes, Hydraulic, 203mm Rotors
• Full Length Fenders included

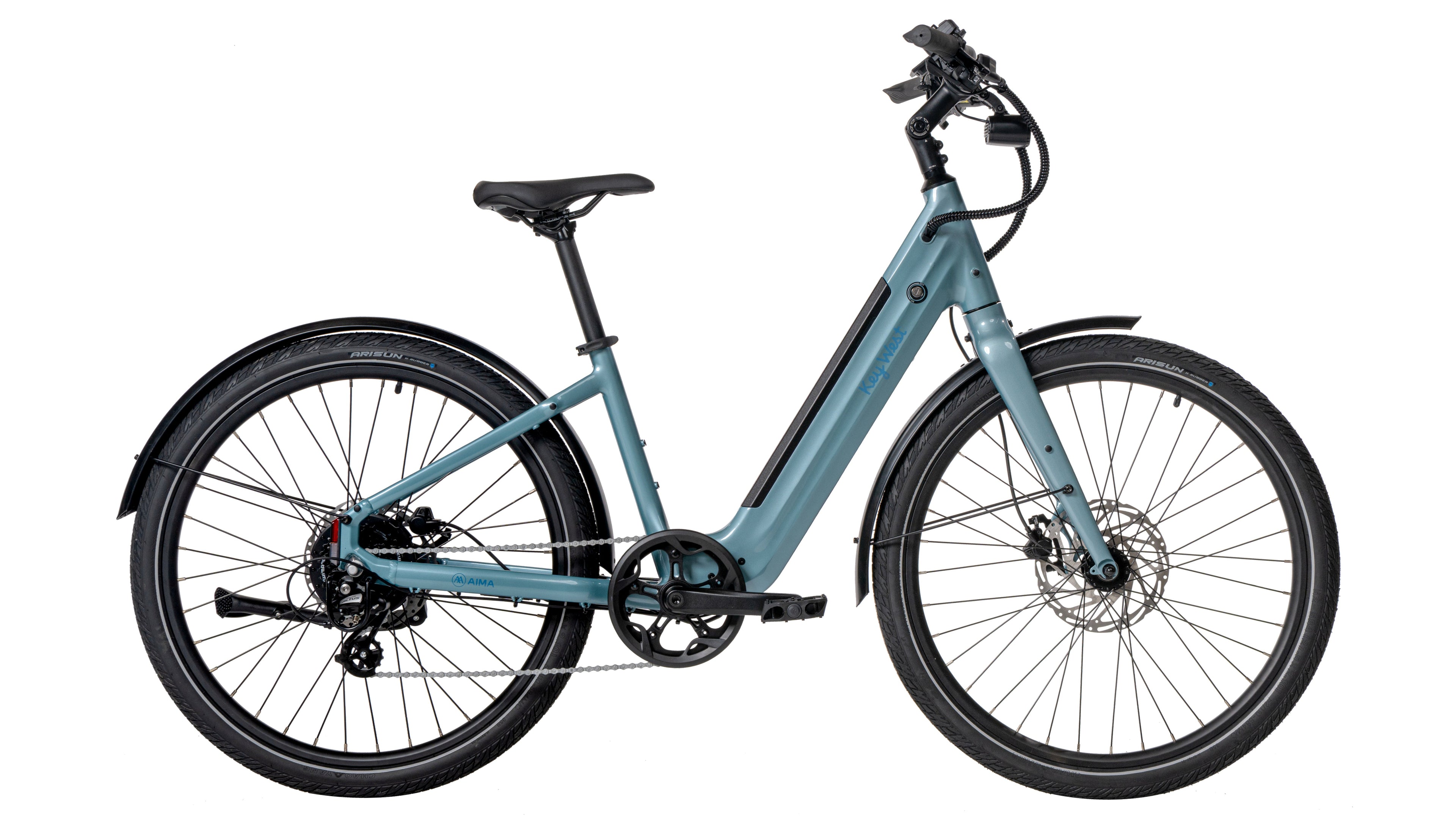

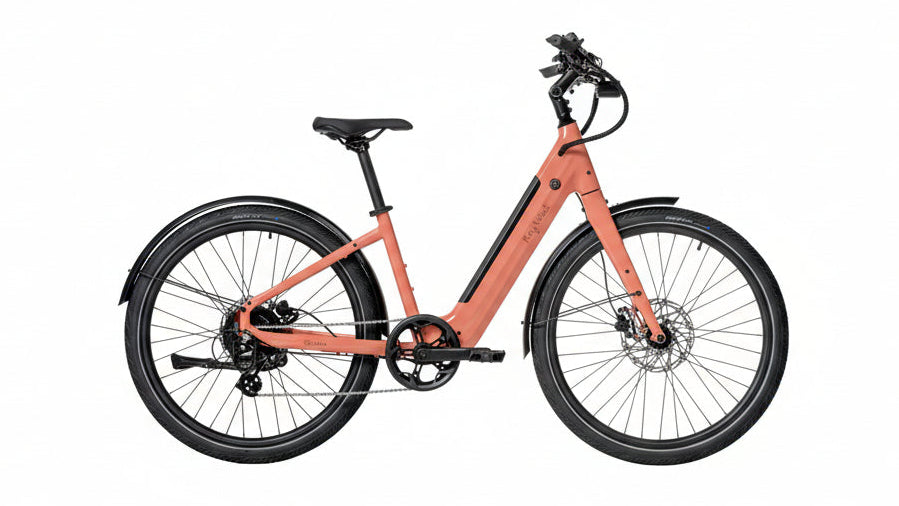

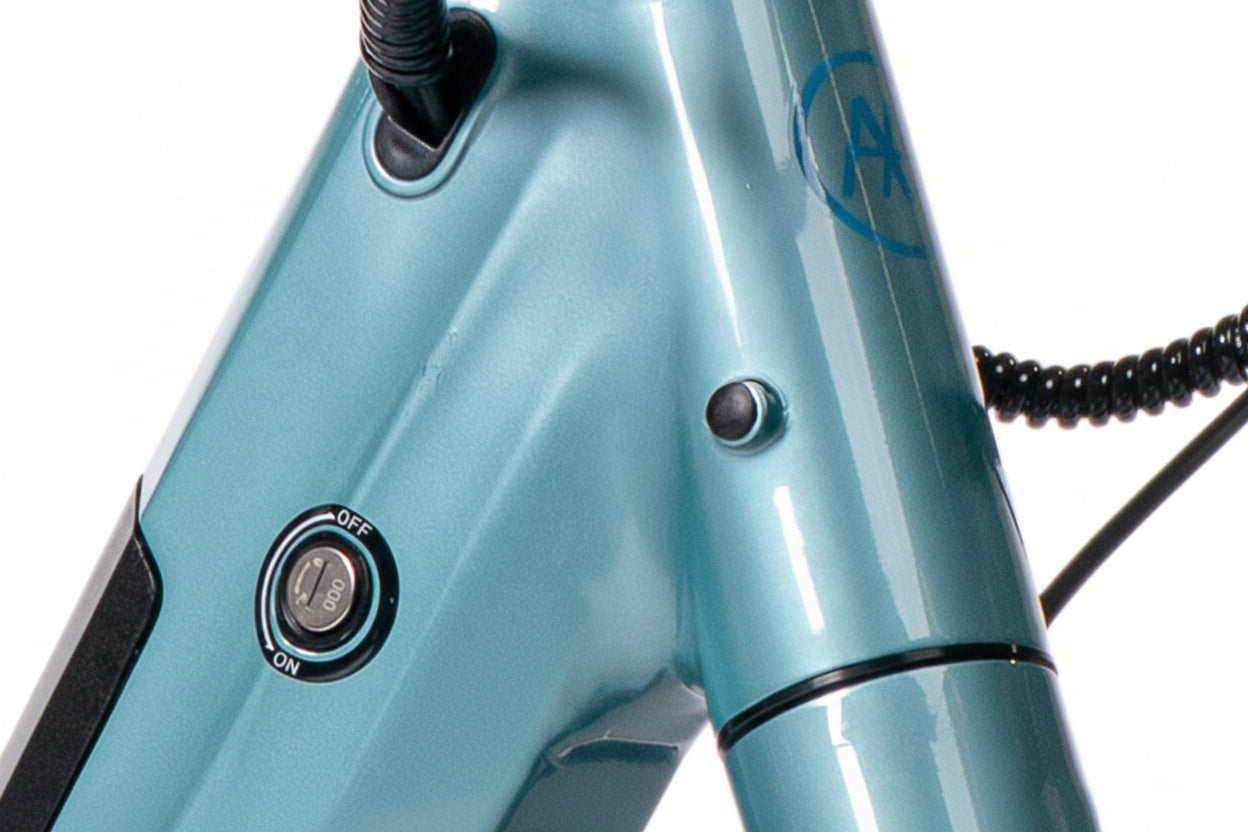

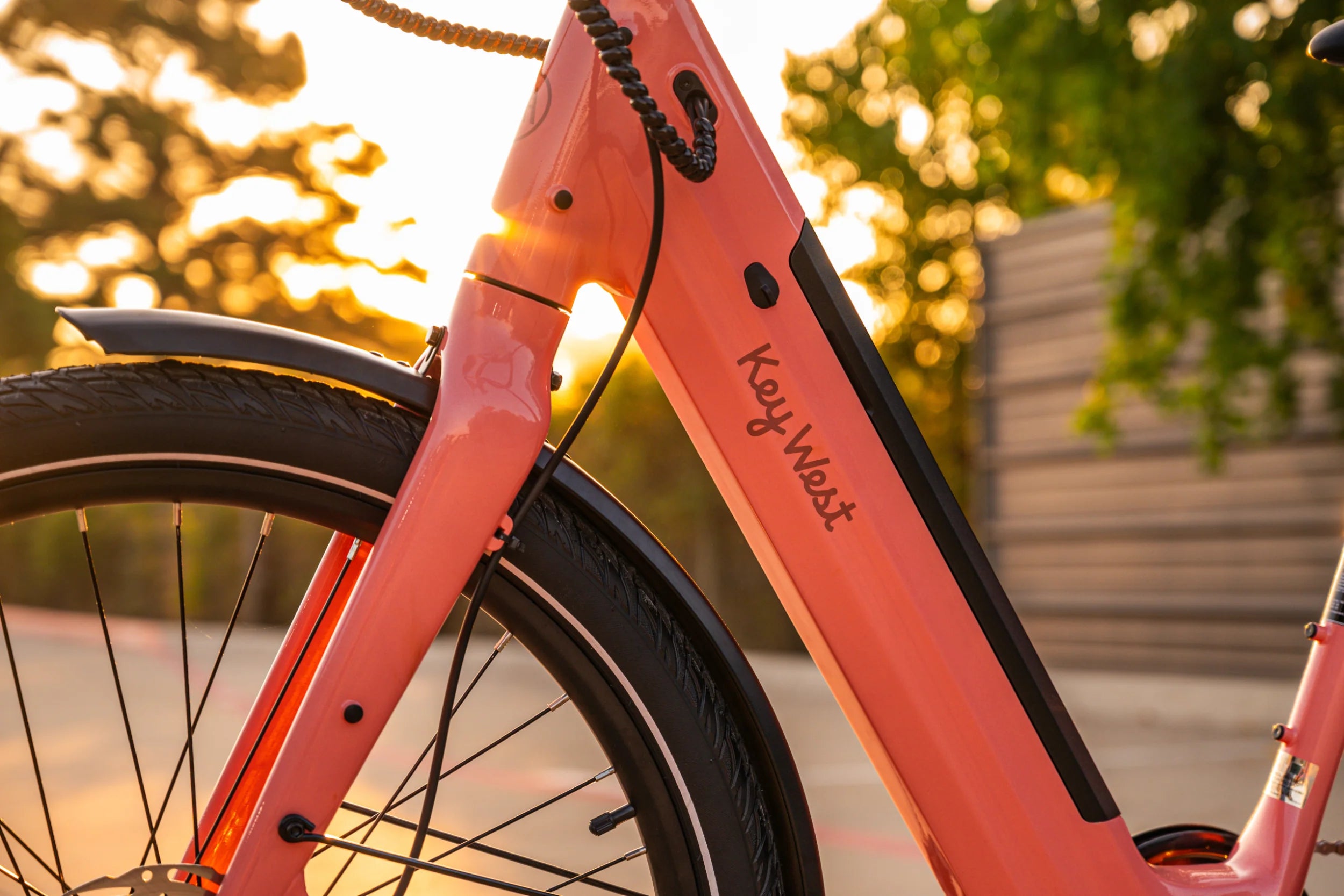

Frame: Unique Lightweight Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing, Integrated bearings, 100mm BSA, Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)

Fork: One-piece Lighweight Fork, 1-1/8” Threadless

Stem: Forged Alloy, Adjustable Angle, 1-1/8” Threadless, with Front Light Mount

Handlebar:  City Handlebar, Riser, Ø31,8mm, Width: 680mm

Grips: Comfort Ergo, Bolt-On

Seatpost: Alloy, Ø30.4mm Quick Release clamp

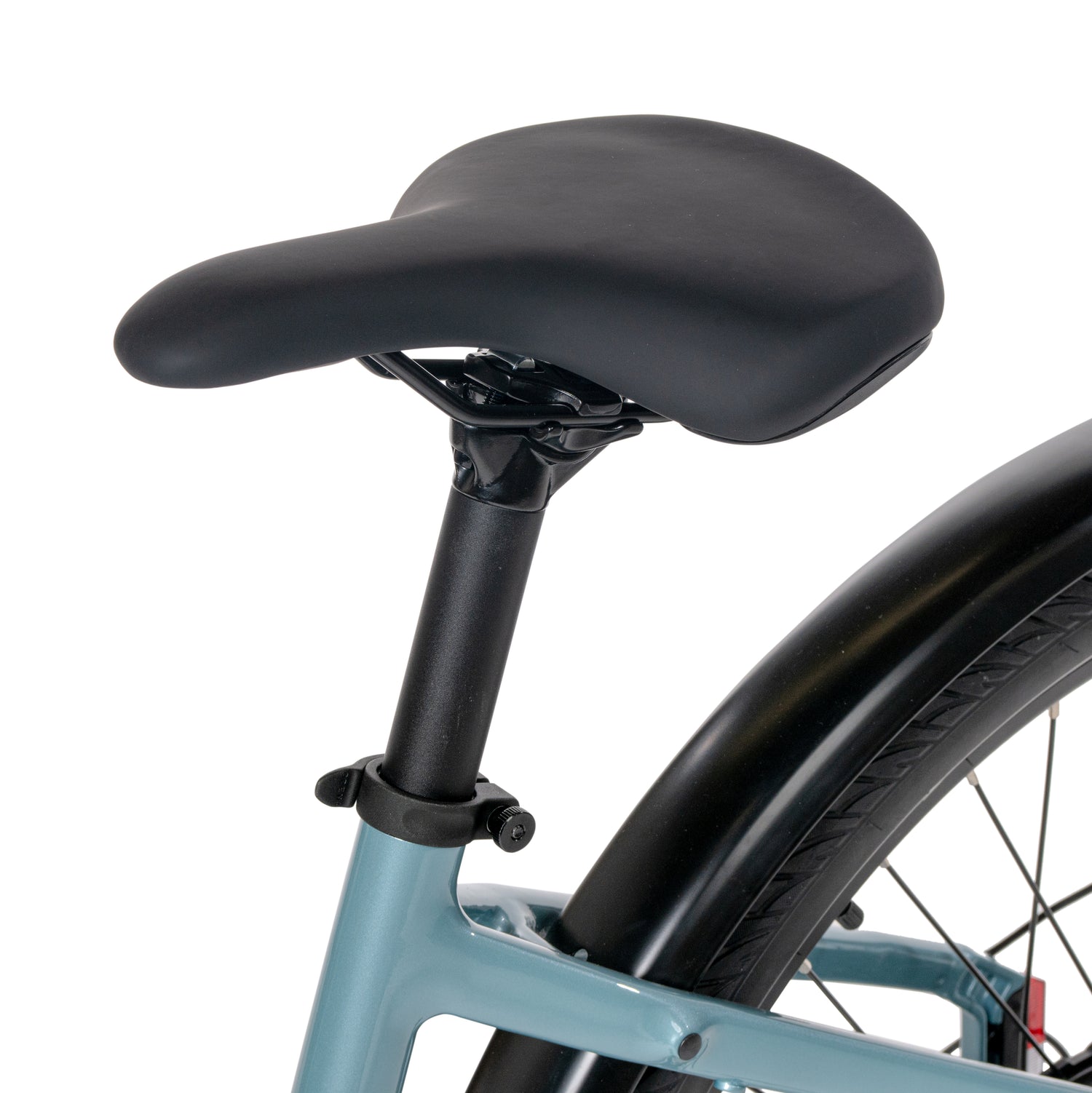

Saddle: Comfort

Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 46T

Cassette: Shimano HG, Megarange 12-32T

Chain: PYC, 1/2” x 3/32”

Pedals:  Alloy, 9/16’’

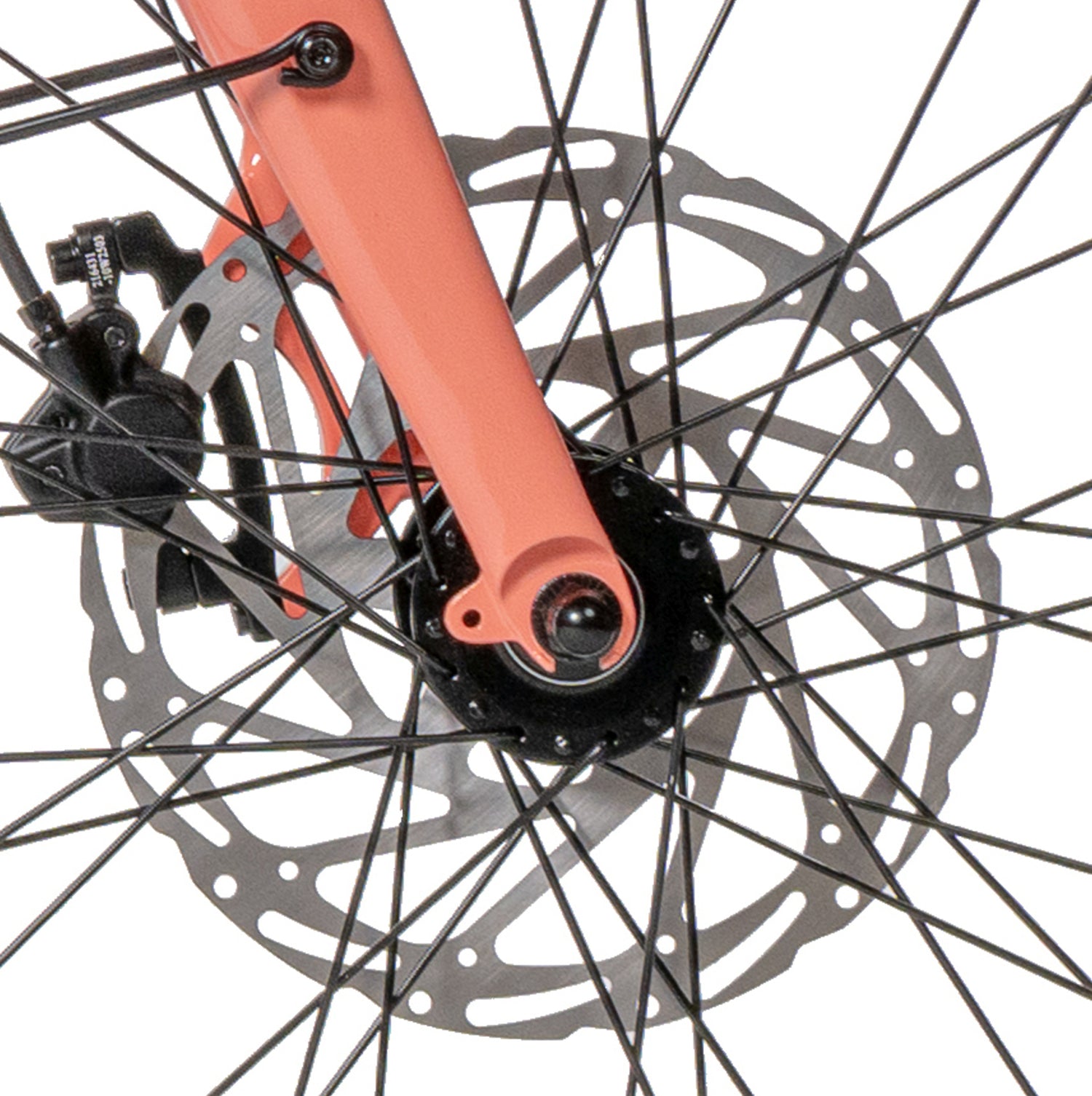

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

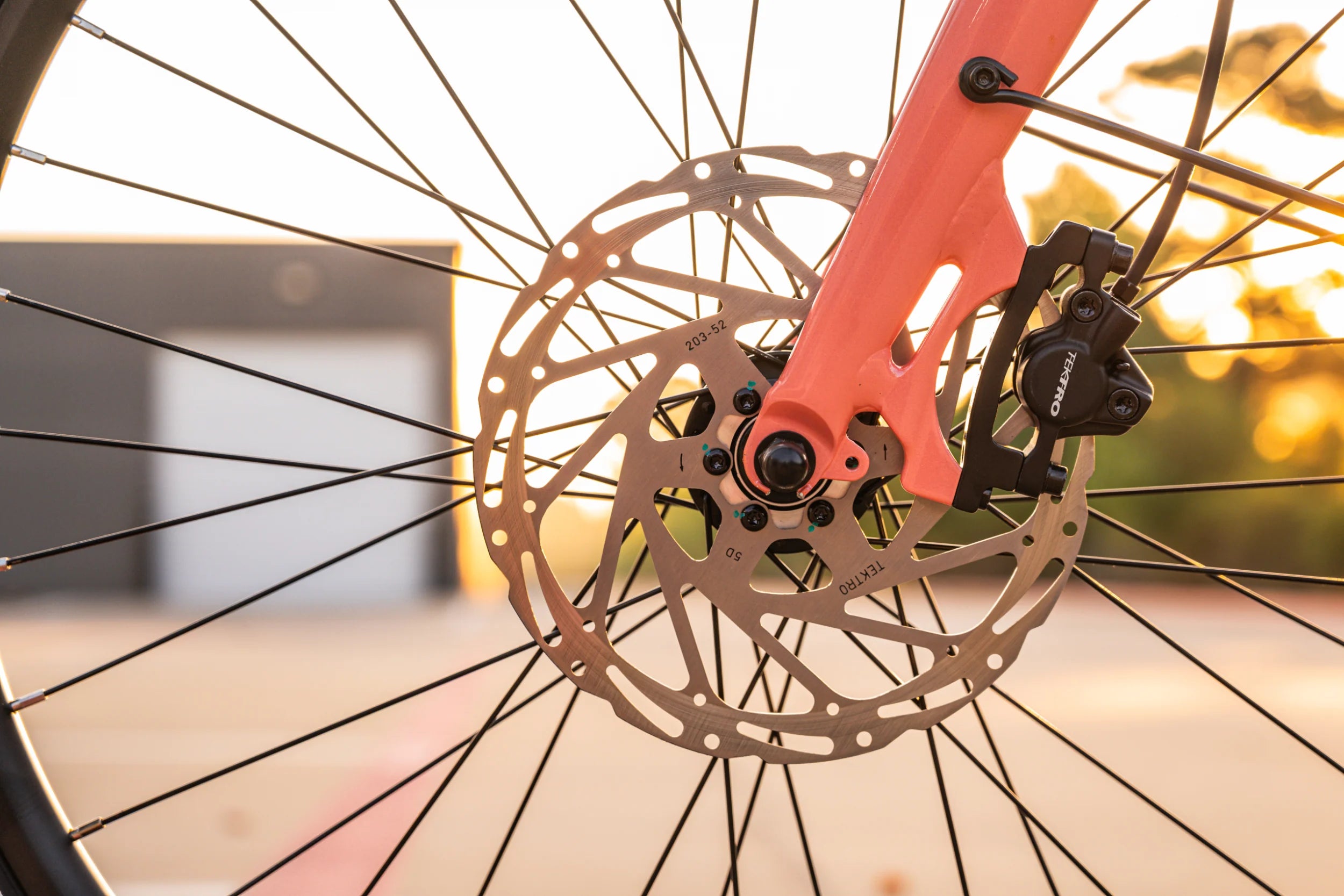

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 27.5’’, 36H, Double Wall Disc Profile, Alloy, Schrader

Hubs: Front: Alloy, 100mm, Bolt-On, 6-Bolts Disc Mount, Rear: (See Motor)

Spokes: 12G Stainless Steel, Black

Tires: 27.5 x 2.1’’, Reflective Side Strips, E-Bike Rated Casing

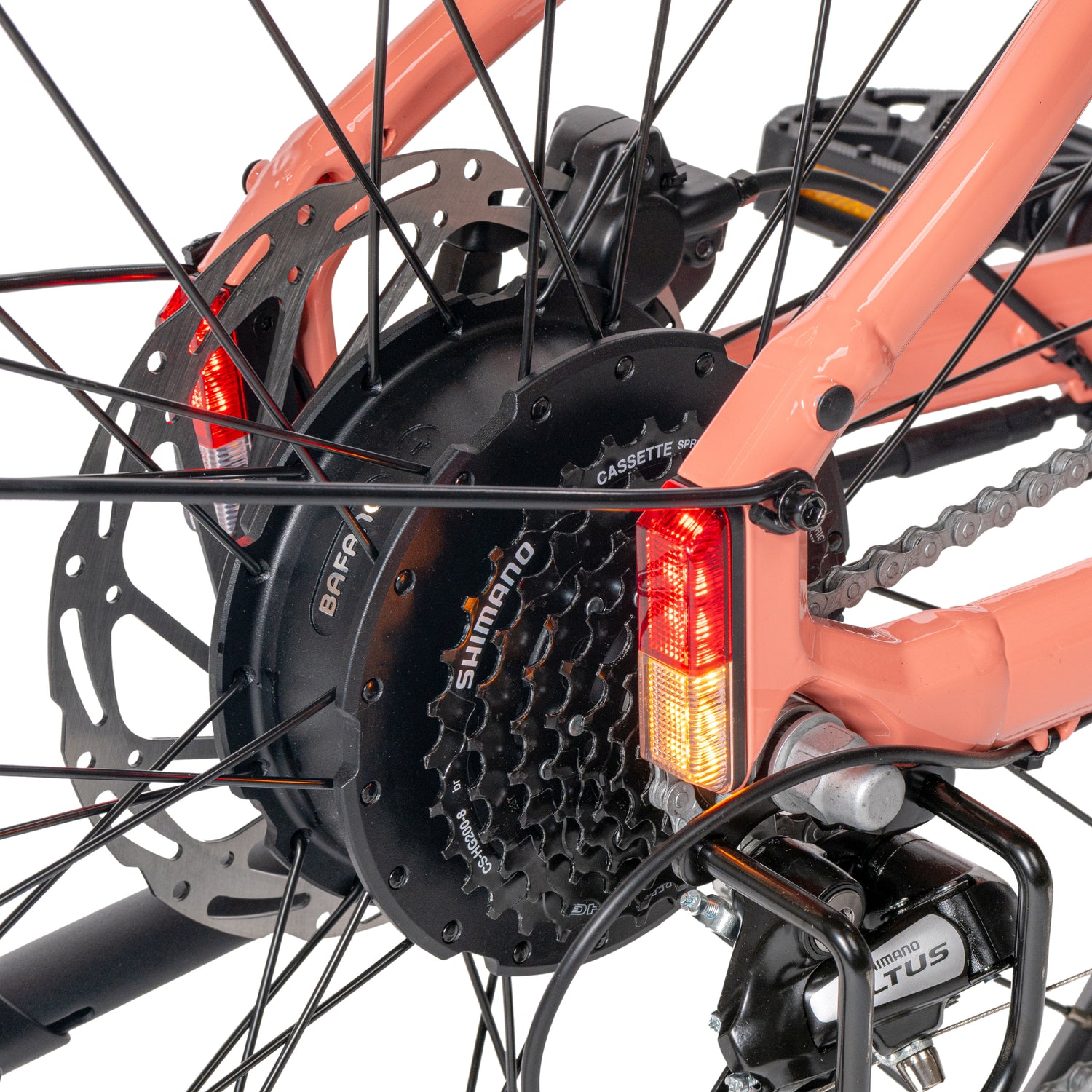

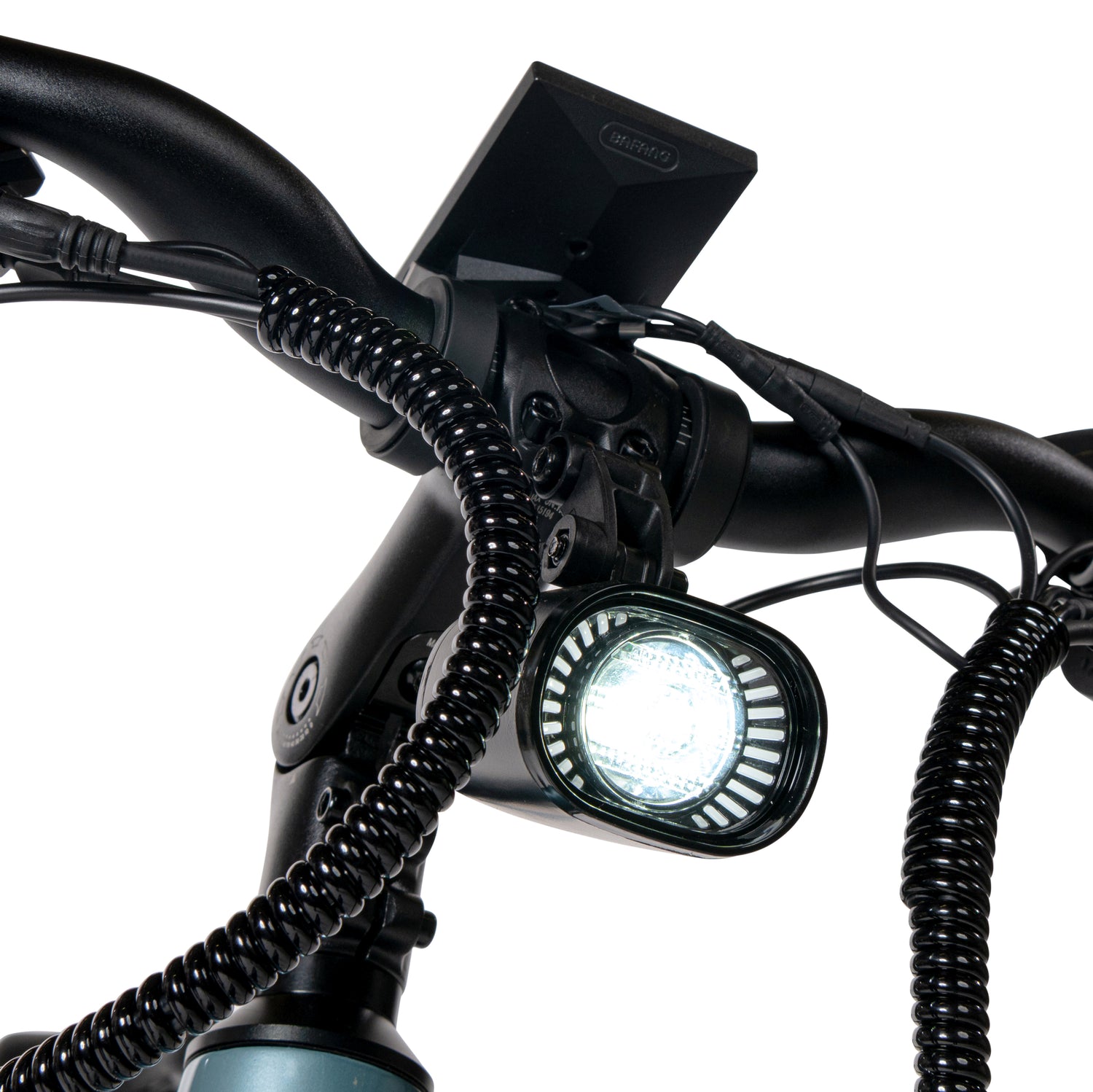

Driving Lights: (Front): Stem-mounted white driving light, 600 lumens (Rear): Integrated red driving light / Active braking and Yellow turning signal lights (remotely controlled)

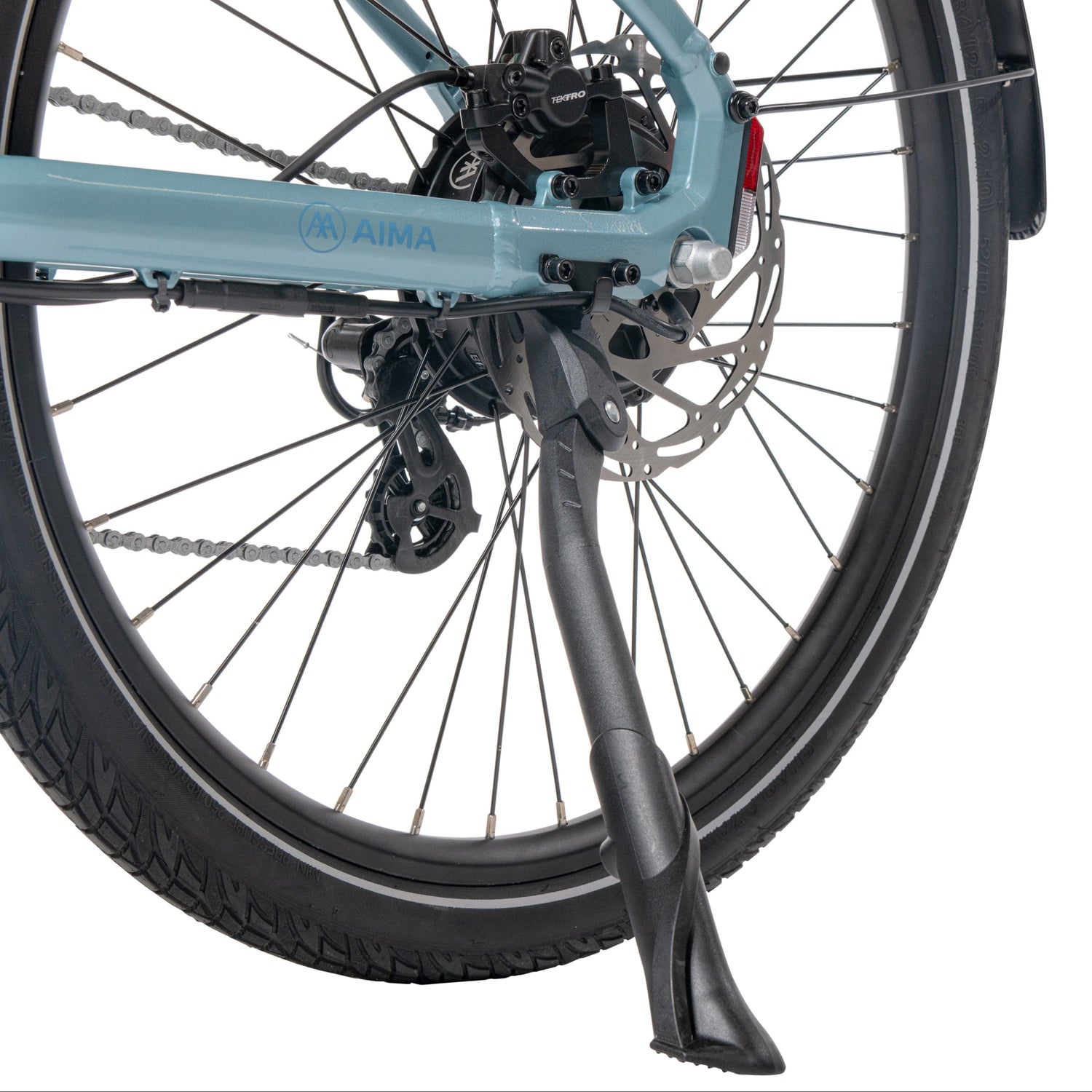

Accessories: Fenders, Direct Mount Alloy Kickstand

Listed Weight: 55 lbs (25 kg)

Max Payload: 320 lbs (145 kg)

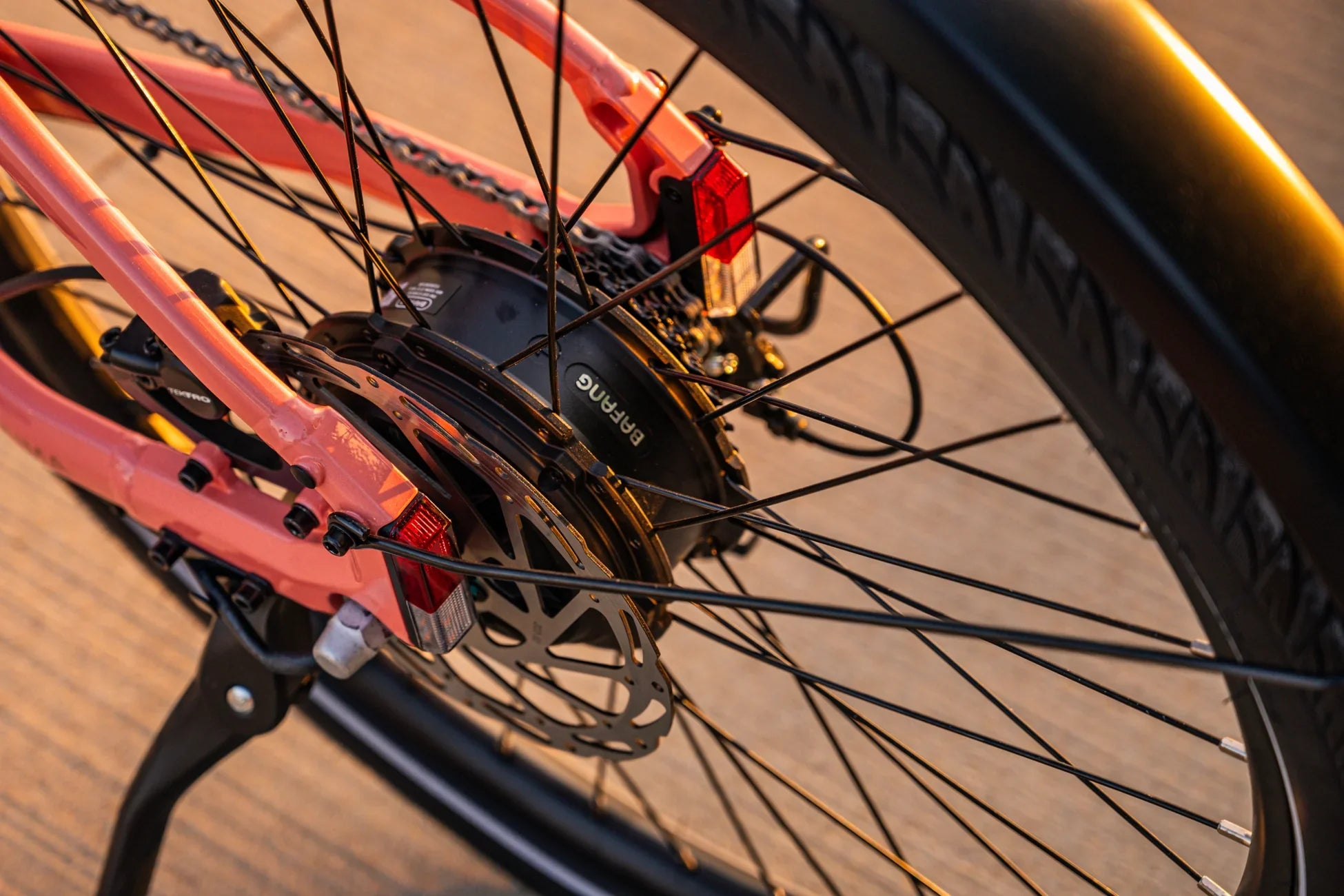

Motor: Bafang G210 48V Brushless Rear Hub, 500W, 36H*12G

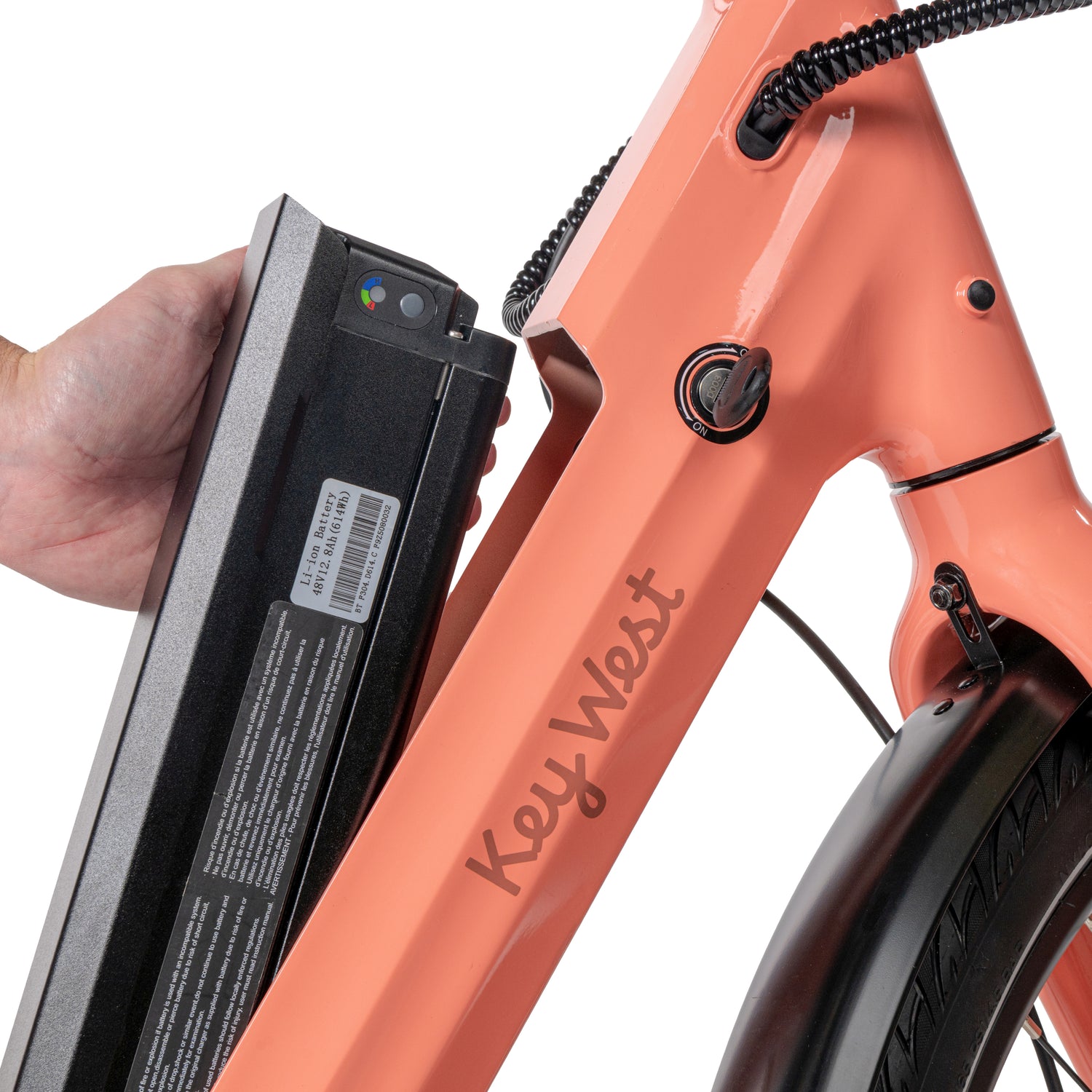

Battery: Bafang BT F304, Semi-Integrated, 12.8Ah (614Wh) Lithium-ion

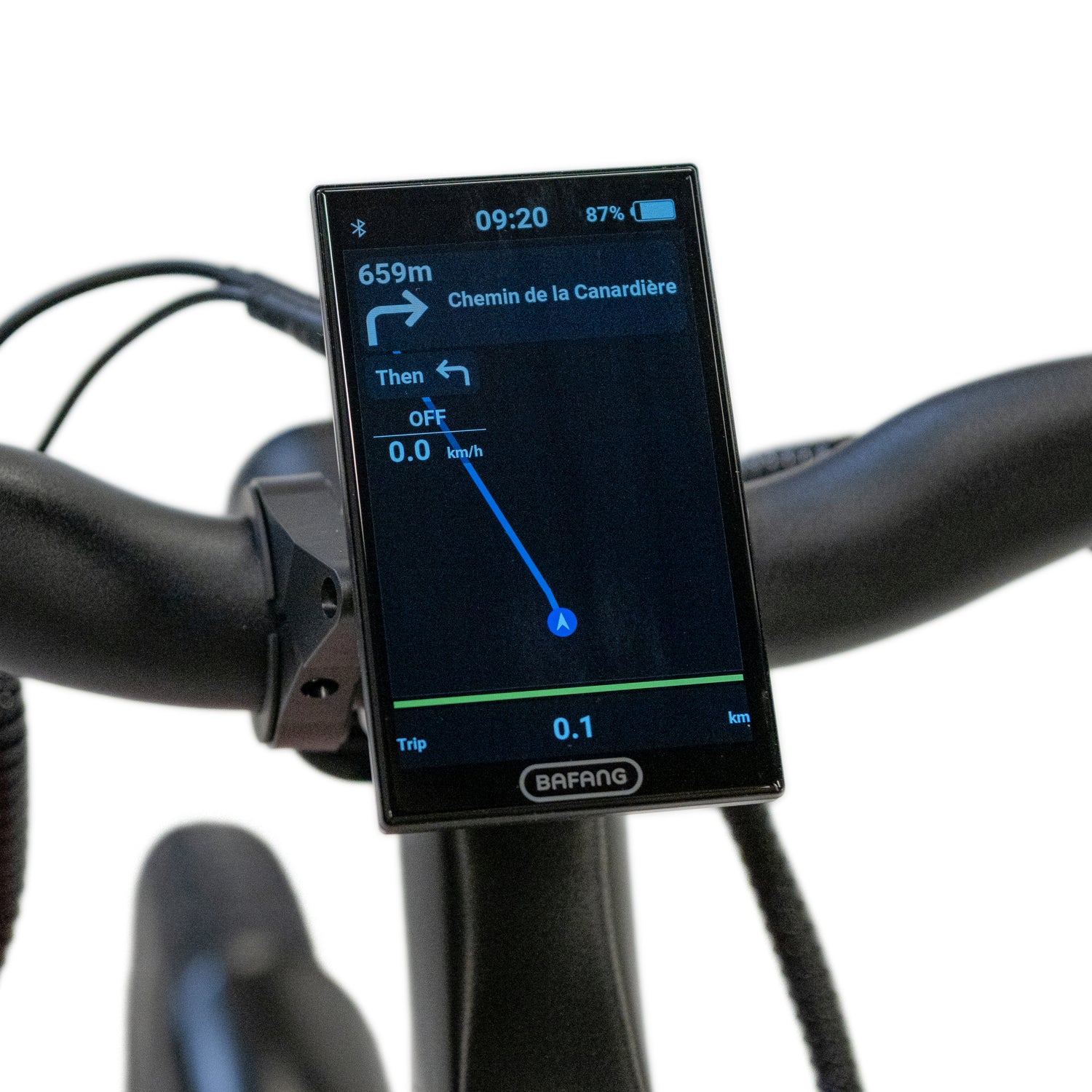

Display: Bafang DP C010, Bluetooth Connected, Color TFT LCD, Buit-in Navigation System

Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups

Throttle: On Demand Thumb Press Button

Control Pad: Power / PAS level

Driving Lights: Blinkers Turn Signal Lights / Electronic Horn

Charger: AIMA 48V 3A Fast Charge

Range varies significantly depending of motor power and battery capacity, and of course, depending on the selected power assist level. Other factors influencing range are nature of terrain, wind speed, gradient, riding style, total rider and cargo weight, tire pressure and temperature.

AIMA’s software provides the following estimated range figures based on a fully charged, brand new battery:

• Assist Level 1: 90 km
• Assist Level 2: 80 km
• Assist Level 3: 70 km
• Assist Level 4: 60 km
• Assist Level 5: 50 km

For optimal battery health, avoid fully draining the battery. Instead, aim to recharge when the remaining capacity drops to around 10% to help preserve long-term performance and lifespan.
