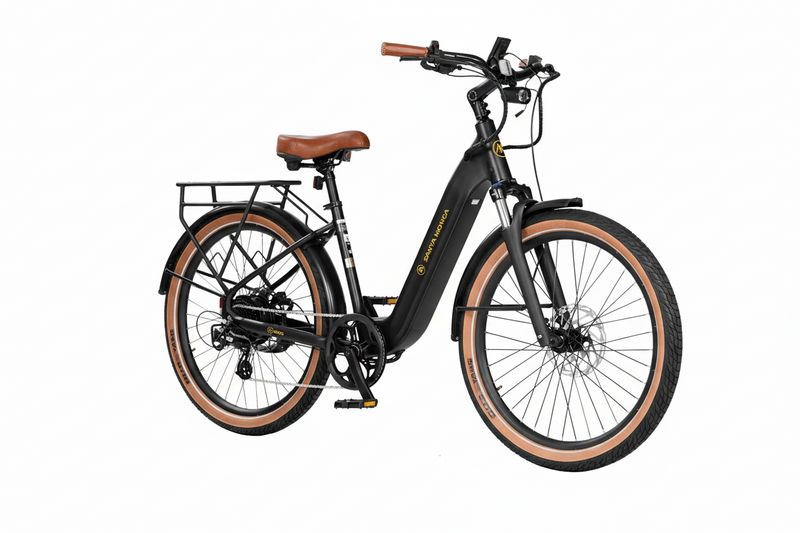

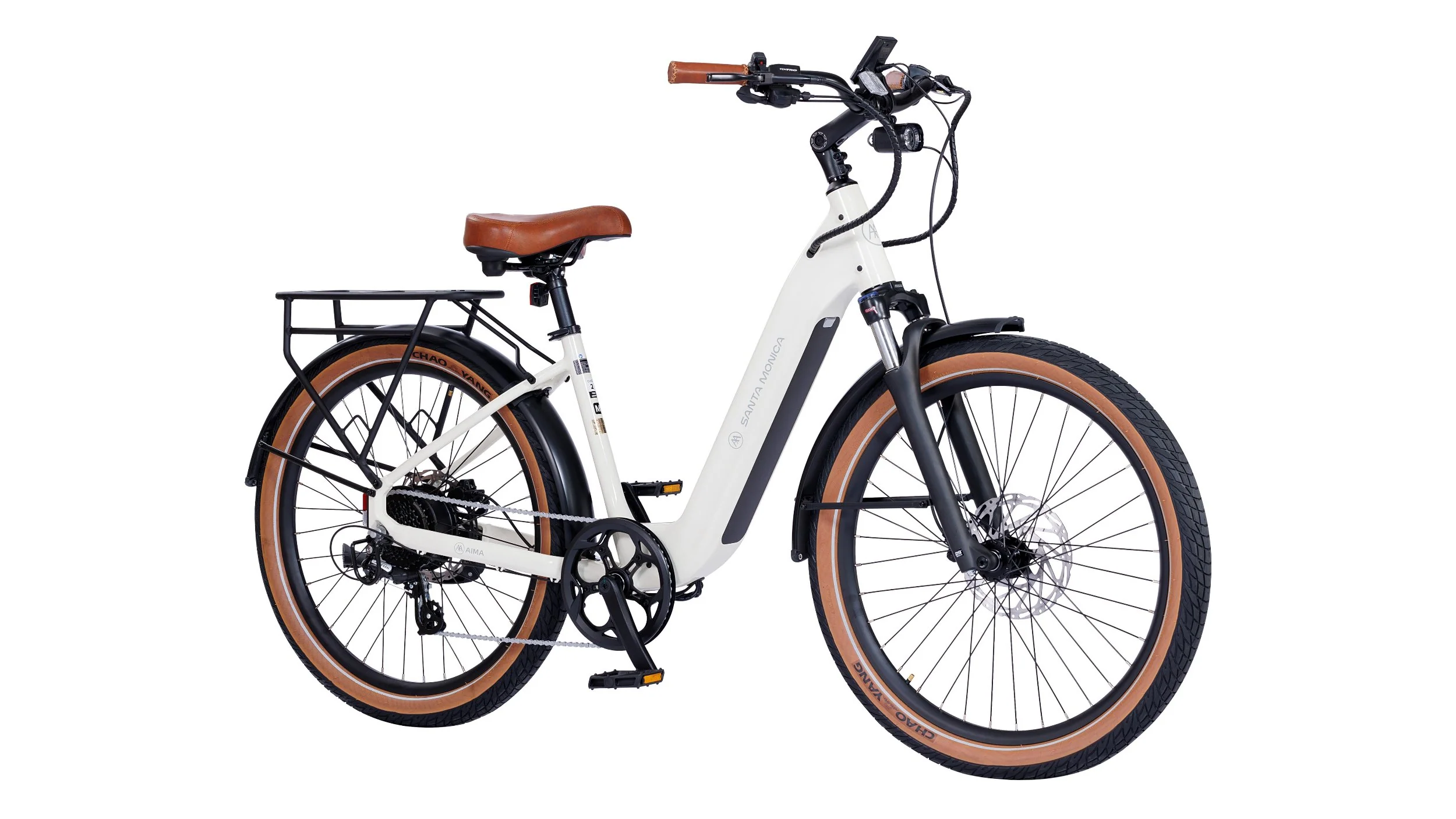

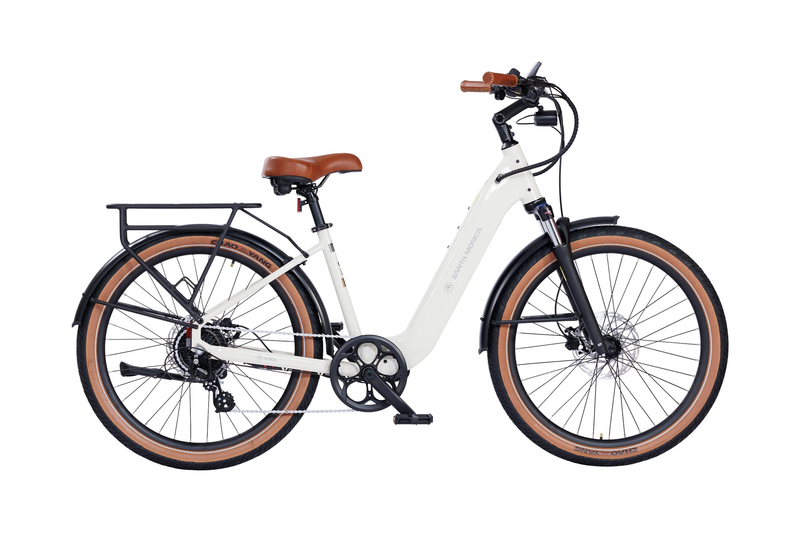

• Unique Lightweight Step-Thru Aluminum frame with integral Smooth Welding

• UL Certified, Reliable Pedal Assist System, provided by Bafang

• Powerful Rear Hub Motor, 48V, 500W, Max Torque 70Nm

• High capacity Lithium-ion Battery, 48V, 15Ah (720Wh)

• Torque Sensor

• Integrated Driving Lights & Blinkers Turn Signals

• Shimano Drivetrain

• Tektro E-Brakes, Hydraulic, 203mm Rotors

• Full Length Fenders and MIK-HD Rear Rack included

Frame: Unique Lightweight Step-Thru Hydroformed Aluminum alloy frame, Integral Smooth Welding, Internal Cable Routing,Oversized Taper Headtube with integrated bearings, 83mm BSA, Replaceable forged alloy derailleur hanger,Fully Integrated rear Dropouts with LED Rear light / Brake / Turn Signal lights (remotely controled)

Fork: SR Suntour Mobie A32, 75mm travel Suspension Fork, Locking Lever, Spring Preload Adjustment, Oversized Taper Steerer, 100x15mm Thru-Axle

Stem: Forged Alloy, Adjustable Angle, 1-1/8” Threadless, with Integrated Front Light Mount

Handlebar: City Handlebar, Riser, Ø31,8mm, Width: 680mm

Grips: Comfort, Retro Inspired

Seatpost: Alloy, Ø30.4mm Quick Release clamp

Saddle: Comfort Wide Retro Inspired Brown, Tear-Resistant, Integrated Springs and Lifting Handle

Shifters: Shimano Acera ST-M315, Rapidfire, 8 Speeds

Derailleur: Shimano Altus RD-M310, with Protecting Cage

Chainring: Direct Mount, Splined alloy spider, 52T

Cassette: Shimano HG, Megarange 11-34T

Chain: PYC, 1/2” x 3/32”

Pedals:  Alloy, 9/16’’

Brakes: Tektro HD-E3520, Hydraulic Disc Brakes,with Power cut-off sensor

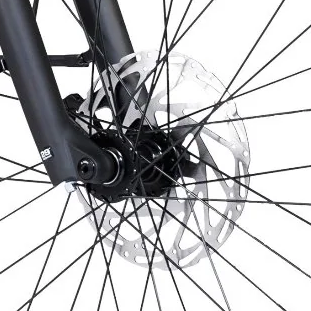

Rotors: Stainless Steel TR-52 Anti Vibration 203mm 6-Bolt rotors

Rims: 27.5’’, 36H, MTB-grade Disc specific double wall profile, Schrader

Hubs: Front: Alloy, 100x15mm Thru-Axle, Sealed Bearings, 6-Bolts Disc Mount Rear: (See Motor)

Spokes: 12G Stainless Steel, Black

Tires: Chao Yang, 27.5 x 2.6’’, Retro Tan Wall,Reflective Side Strips, E-Bike Rated Casing

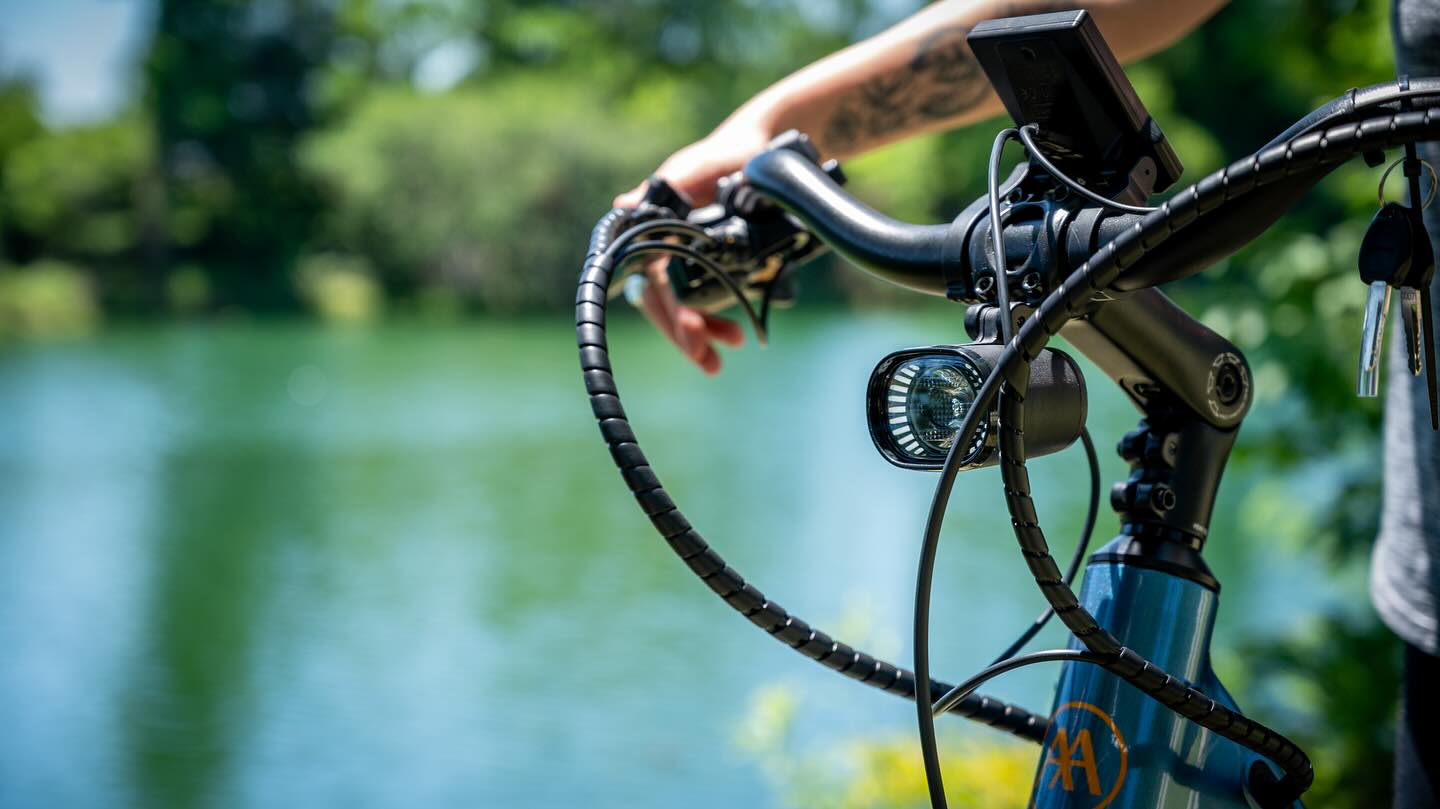

Driving Lights: Front: Semi-Integrated white driving light, 600 lumens, Rear: Integrated red driving light / Active braking and Yellow turning signal lights (remotely controlled)

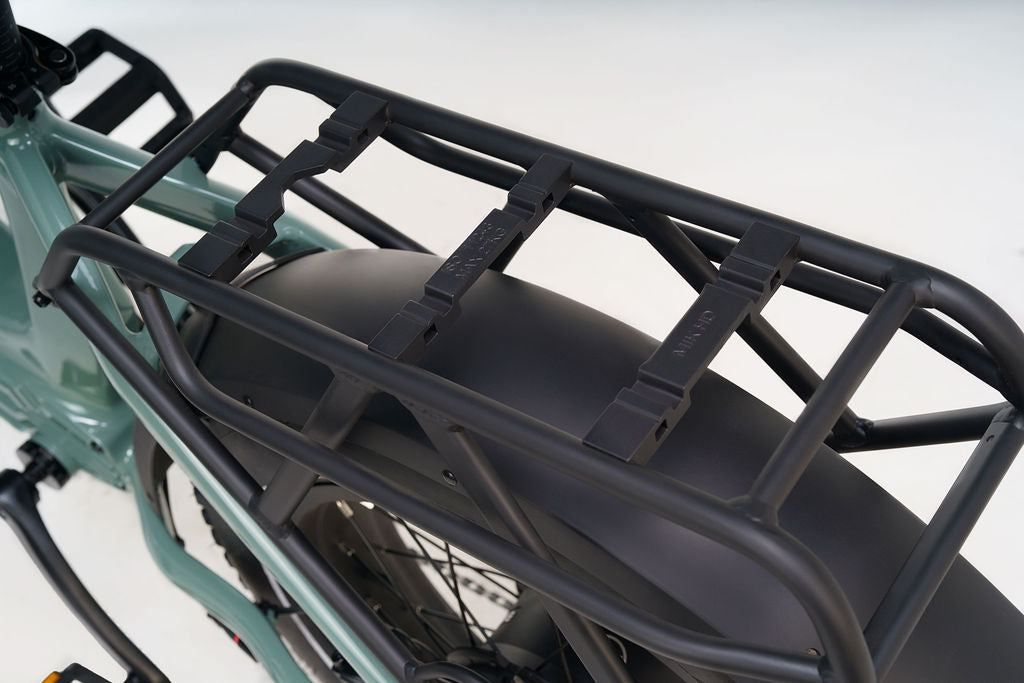

Accessories: MIK-HD Alloy Cargo Rack, Fenders, Direct Mount Alloy Kickstand

Listed Weight: 64 lbs (29 kg)

Max Payload: 400 lbs (180 kg)

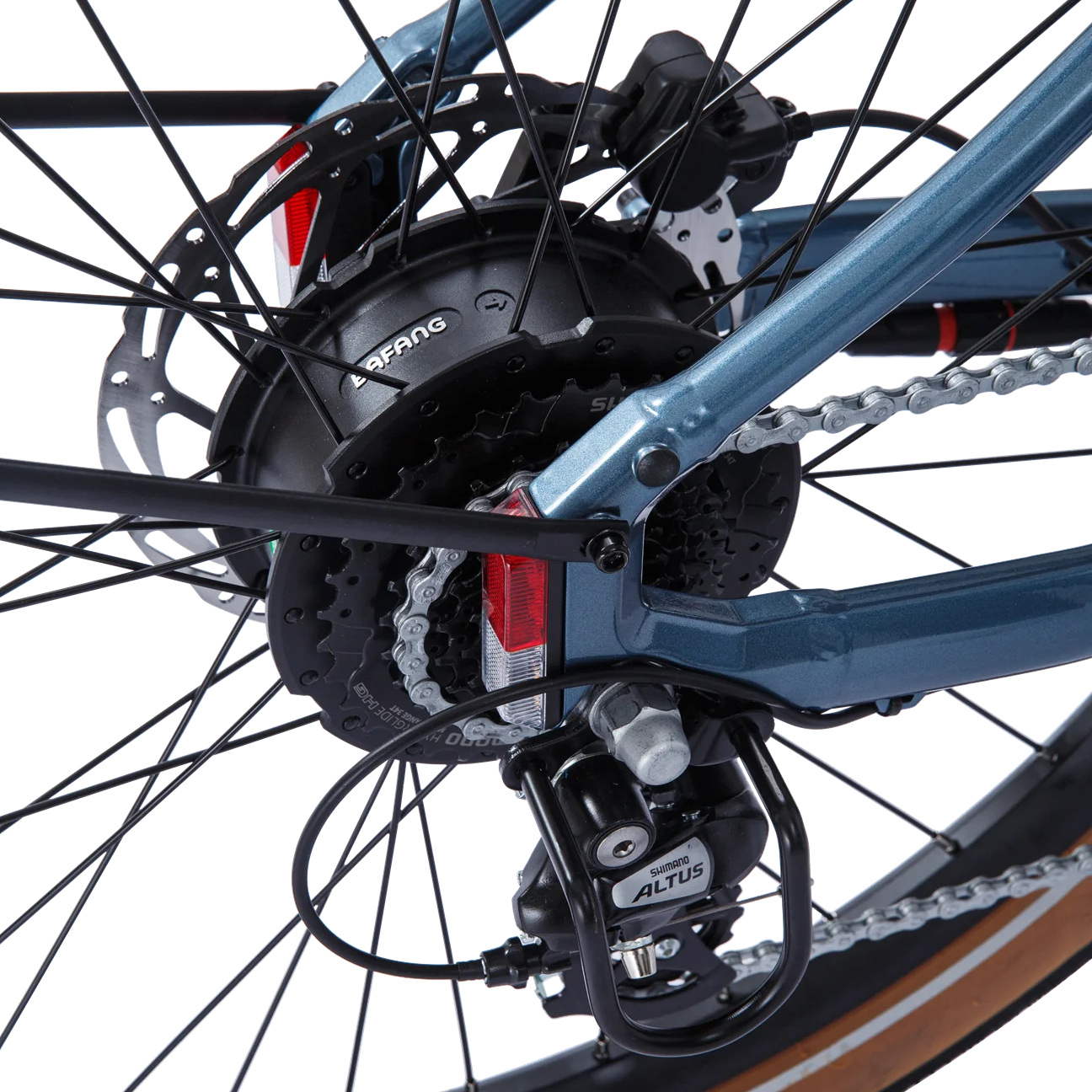

Motor: Bafang G0270 48V Custom Brushless Rear Hub, 500W, 36H*12G

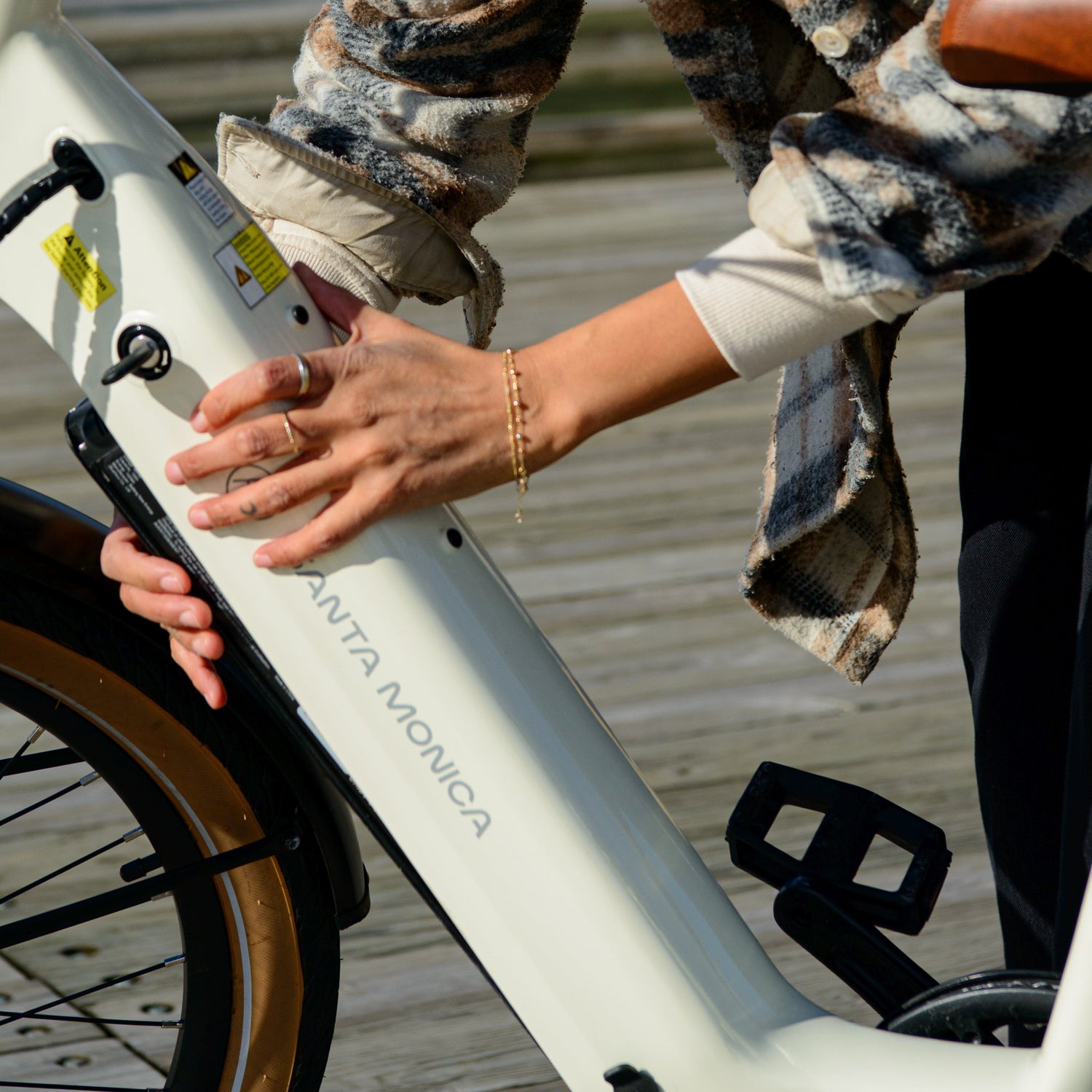

Battery: Bafang BT F440, Semi-Integrated, 15Ah (720Wh) Lithium-ion

Display: Bafang DP C270.CAN, Color LCD

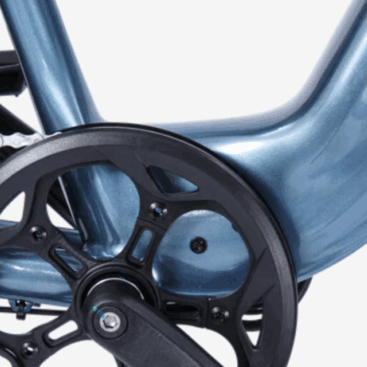

Sensor: Bafang SR PA242 Torque Sensor, JIS Bottom Bracket, BSA External Cups

Throttle: On Demand Thumb Press Button

Controls: Left Side: Power / PAS level / Driving Lights Right Side: Blinkers Turn Signal Lights / Electronic Horn

Charger: AIMA 48V 3A Fast Charge

Range varies significantly depending of motor power and battery capacity, and of course, depending on the selected power assist level. Other factors influencing range are nature of terrain, wind speed, gradient, riding style, total rider and cargo weight, tire pressure and temperature.

AIMA’s software provides the following estimated range figures based on a fully charged, brand new battery:

• Assist Level 1: 80 km
• Assist Level 2: 70 km
• Assist Level 3: 60 km
• Assist Level 4: 50 km
• Assist Level 5: 45 km

For optimal battery health, avoid fully draining the battery. Instead, aim to recharge when the remaining capacity drops to around 10% to help preserve long-term performance and lifespan.
